Overdose Triple Link Steering Wiper Set - Red: Ultimate Performance Upgrade

Level Up Your Ride: Overdose Triple Link Steering Wiper Set – Red Performance!

Unleash your inner adventurer with this extraordinary piece – a meticulously crafted treasure designed to ignite your senses and elevate your everyday. Imagine the whispers of the wild, the warmth of a hidden sunbeam, and a touch of timeless mystique, all captured within this stunning creation. It's not just a product; it’s a portal to possibility.

$114.24 $228.47

num:

description

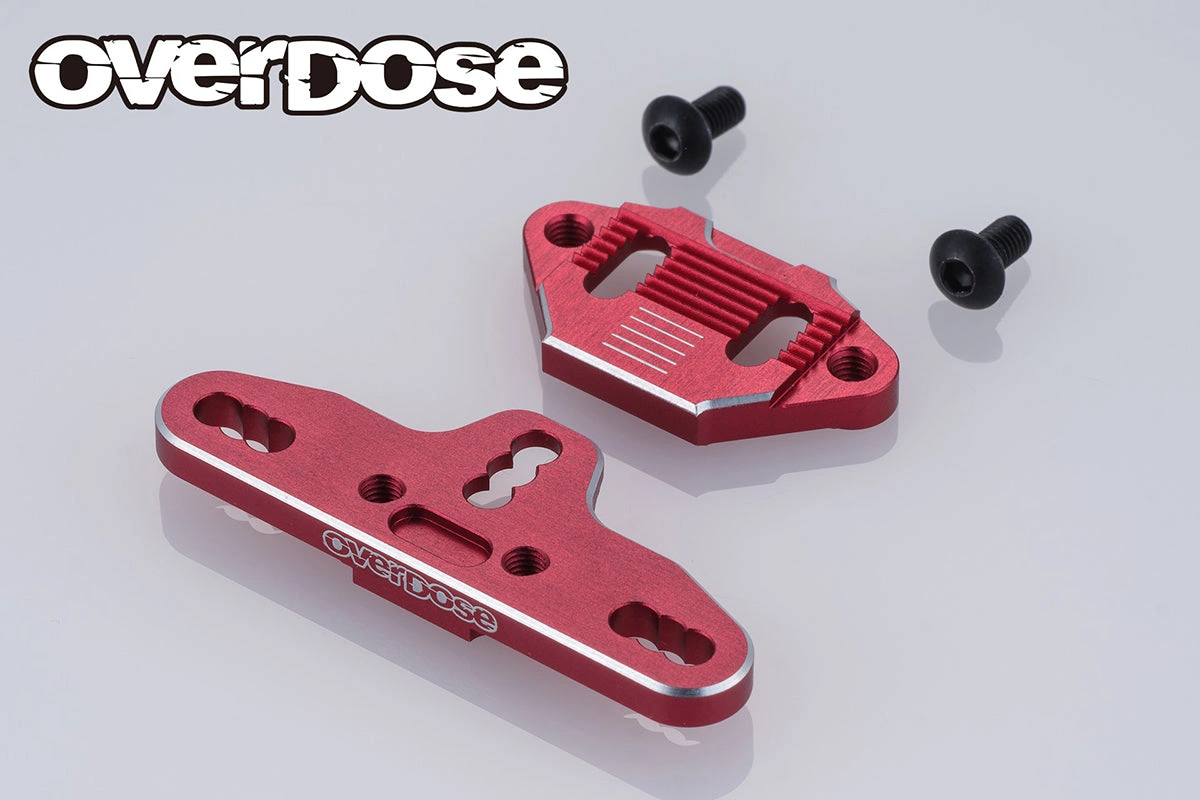

Overdose (#OD3922) Triple Link Steering Wiper Set Type-2 - Red

Feature:

For: Overdose GALM series
This set features Overdose’s latest innovation: a triple link steering wiper system paired with an adjustable steering base, offering unmatched flexibility in fine-tuning your Ackermann geometry.
The revolutionary triple link design transforms how Ackermann adjustments are made by modifying the link trajectory, you can precisely control the rate of change in the Ackermann angle up to full steering lock. The control link length is adjustable in three stages, allowing you to alter the tie rod’s movement path without affecting its position at the neutral steering point.
Both left and right wipers can be mounted in three distinct positions, and the base link’s motion can also be adjusted in three stages for further tuning options.
The steering wiper base is tilted 5 degrees forward to reduce bump steer variation during steering input. Additionally, the adjustable base allows the entire wiper assembly to shift forward by up to 4mm from the standard position, in 1mm increments across five stages. This adjustment lets you retain the tie rod’s protrusion while fine-tuning Ackermann characteristics to suit your driving style without compromising the original steering feel.
Ideal for drivers who demand high precision and customizable performance, this setup puts total steering control in your hands.

Specification:

Material: Aluminum
Colour: Red

What is included:

Overdose (#OD3922) Triple Link Steering Wiper Set Type-2 - Red (1 set)

Note:

When used with the standard plastic bulkhead, some hole positions can not be used.
Cannot be used with OD2663-5 Aluminum Front Bulkhead Type-2.
We recommend using with OD3438-40 Aluminum Front Bulkhead Type-3 (For GALM Series).
Interference may occur depending on the height of the suspension mount installed on the rear front.
The adjustment range may be restricted based on the suspension mount type, installation height, and other factors.
