Purple Reign Rear Suspension Arm Type 3 Overdose
Unleash your inner adventurer with this handcrafted marvel a treasure trove of rustic charm and unexpected delight perfect for adding a touch of wanderlust to your everyday.
$97.60
$195.19

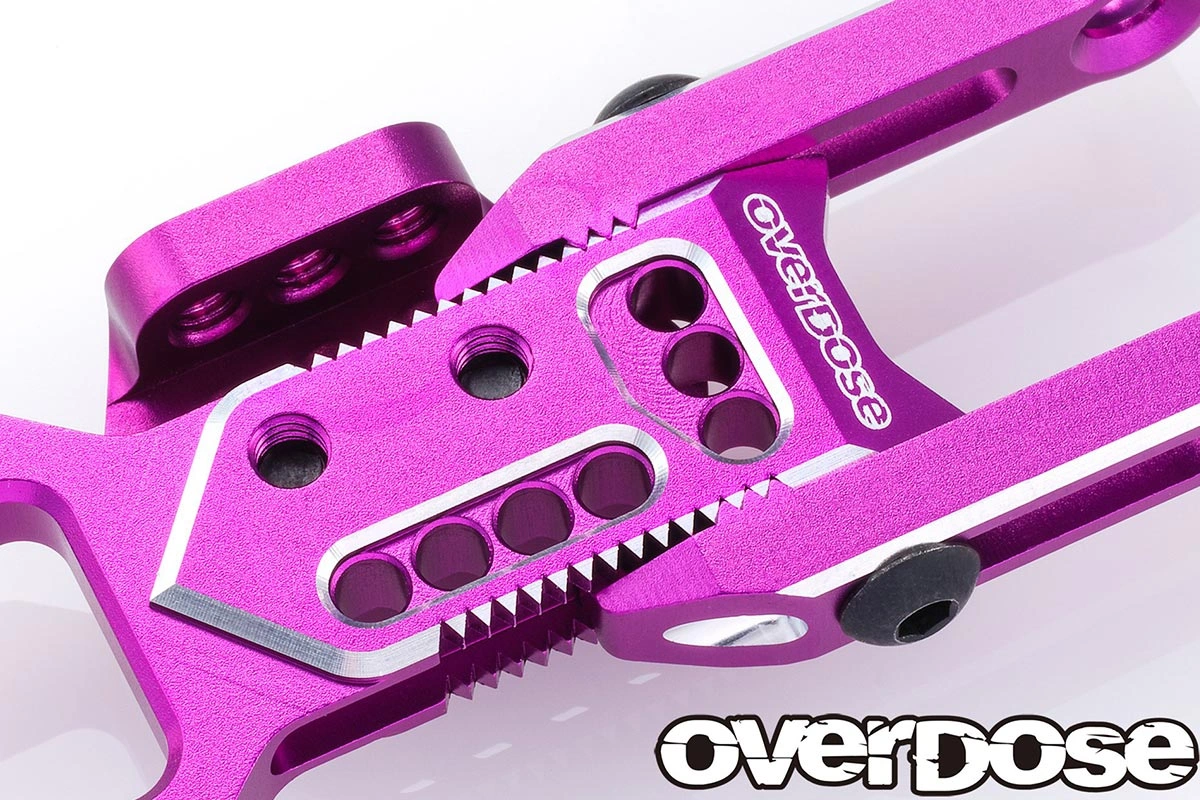

Overdose (#OD2855) Adjustable Aluminum Rear Suspension Arm Set Type-3 - Purple
Feature:
- For: Overdose chassis
- The 4 piece structure design makes the suspension arm length, trailing angle, shock mounting position and wheelbase adjusted widely.
- The suspension arm length can be adjusted in 12 steps in 1mm increments in the range of 53mm to 42mm.
- The trailing angle can be set to 3 degrees and 6 degrees by shifting one or two steps the mounting position of the front and rear adjuster blocks. Narrowing the width of the suspension arm by 7mm from the standard, the adjustment range of the wheelbase has expanded more than ever.
- It is multifunctional, high rigidity, but weighs only increased 2.8g (compared to the standard suspension), and has succeeded in reducing the weight by about 52% compared to Type-2 suspension.
- Included 22mm long suspension pin for the upright side.
- Reference data [Arm length : Standard (plastic) 53mm, ES rear suspension arm 46mm]
Specification:
- Colour: Purple
- Material: Aluminum

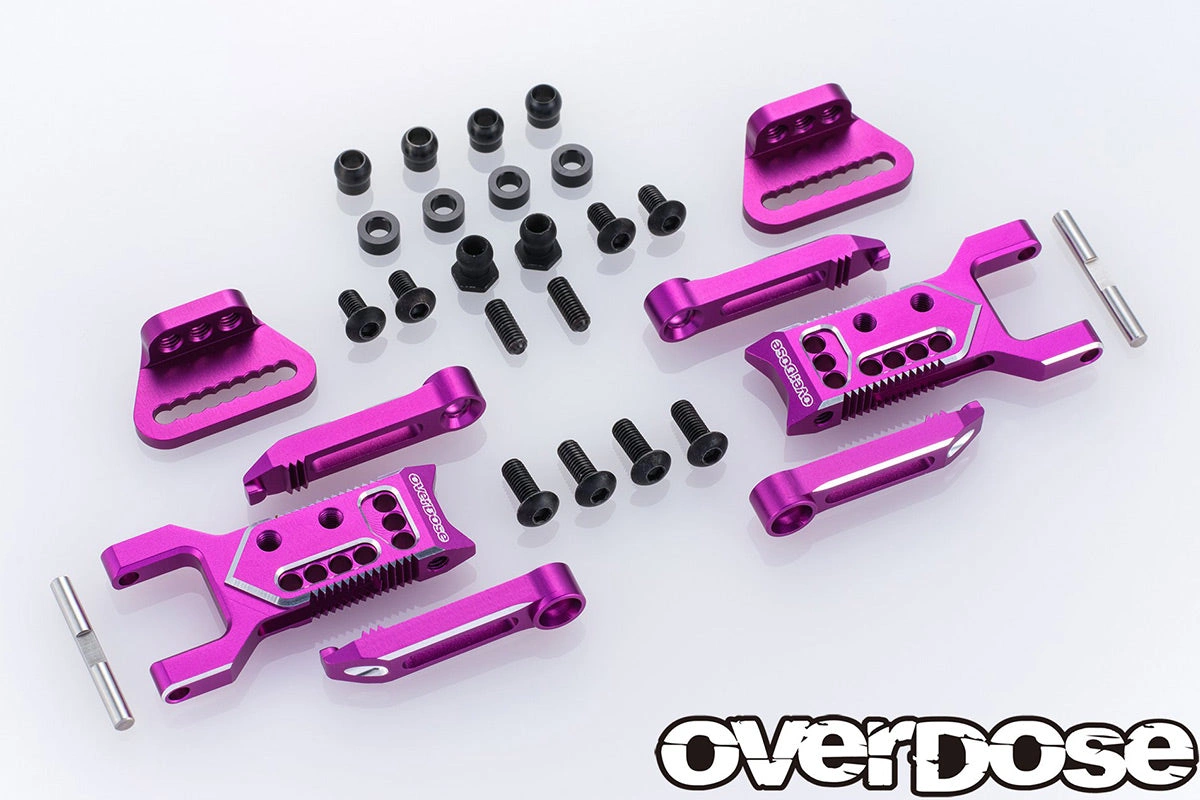

What is included:
- Overdose (#OD2855) Adjustable Aluminum Rear Suspension Arm Set Type-2 - Purple (1 set)
