MerV-ERA 13.5T Black Motor – Power Up Your Ride

Unleash your inner wanderer with this handcrafted treasure a whisper of vintage charm meets modern allure perfect for stowing away your most cherished mementos or elevating your everyday style its subtle imperfections tell a story of artistry and soul just waiting to become part of yours

$140.00 $279.99

num:

description

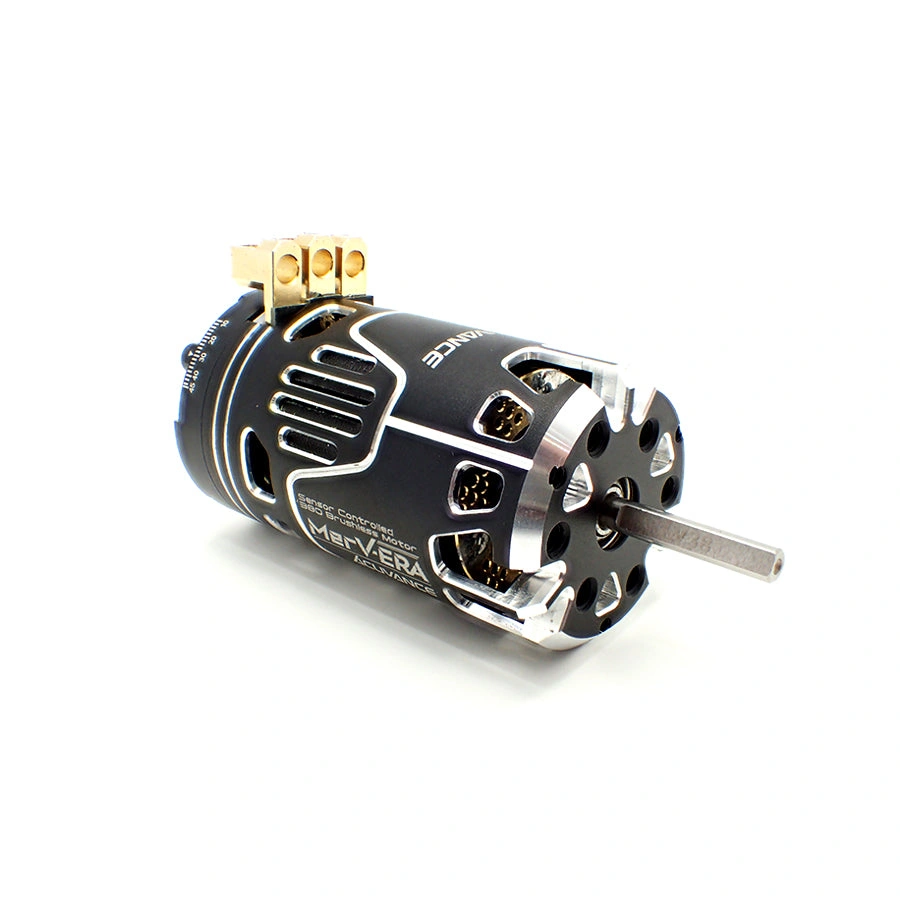

Acuvance MerV-ERA 13.5T Motor - Black

Feature:

Acuvance have condensed the technology we have cultivated so far into a compact case, overturned the concept of 380 motors.
Equipped with the unique system [M・F・C・S] used in AGILE and FLEDGE. Even with a 380 motor with limited internal space, the rotor diameter and weight remain the same, and the characteristics can be changed to a rotation type or torque type without spoiling the original performance of the motor.

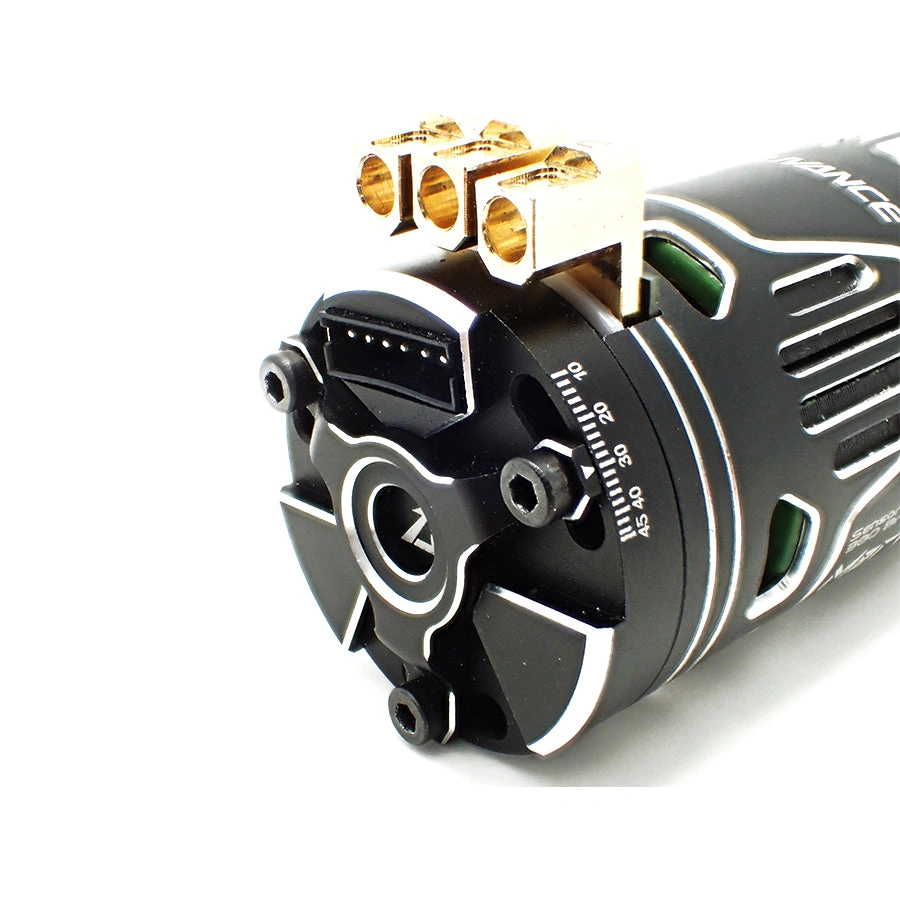

Industry innovation that a variable advance system has been installed in a 380 motor. The characteristics can be easily changed to torque type or rotation type.
The rotor-equipped air-cooled fan 'Tri-Blade' used in AGILE has been refined for this product, achieving high cooling performance.
High-rigidity special alloy plate is installed which reduces internal vibrations that occur when the motor is running and affect rotation efficiency.
The integration of the power plate that connects the motor connection terminal and the coil transmits power efficiently. Furthermore, the MerV-ERA has a horizontal terminal orientation, and a solder welding surface is secured on the top of the terminal. Direct cable attachment by soldering is also possible.
Compatible with the 'Torque Level/Torque End Mode' program installed with Acuvance brushless ESC. This program is exclusively for users of this product, FLEDGE, and AGILE, and allows you to vary the motor torque level according to surface conditions and car.
By using the optional Acuvance Multi-Angle 540-380 Conversion Plate, MerV-ERA can also be mounted on a motor mount for 540 size.

Specification:

Colour: Black
Motor Size: 380
Type: Sensored Brushless
Turns: 13.5T
Input voltage (V): 4.2V – 8.6V
KV (rpm / V): 4,150
Power consumption (W): 190
Efficiency (%): 92
Standard Rotor: Sintered (Neodymium Magnet) LV38
Coil winding method: Star winding
Weight / Overall Length: 92g / 52mm (between motor mount contact surface and end bell tip)
